Transformer Calibrator

FOB Reference Price:Get Latest Price
US $500-2,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hubei, China (Mainland)
Brand Name:
HC
Model Number:
HGQB-C
Power:
Electronic
Usage:
Auto Testing Machine
Temperature:
-5℃~40℃
Standard:
IEC/EN60335-1 IEC60598 IEC60950
Color:
yellow
Certificate:
ISO9001:2008
Frequency:
50/60Hz
Shape dimension(mm):
410(L)*330(W)*180(H)
Weight:
5kg
SupplyAbility
SupplyAbility:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
packed with carton or wooden case
Port
wuhan/shanghai/shenzhen
Lead Time :
within one week after signing the contract
Product Description

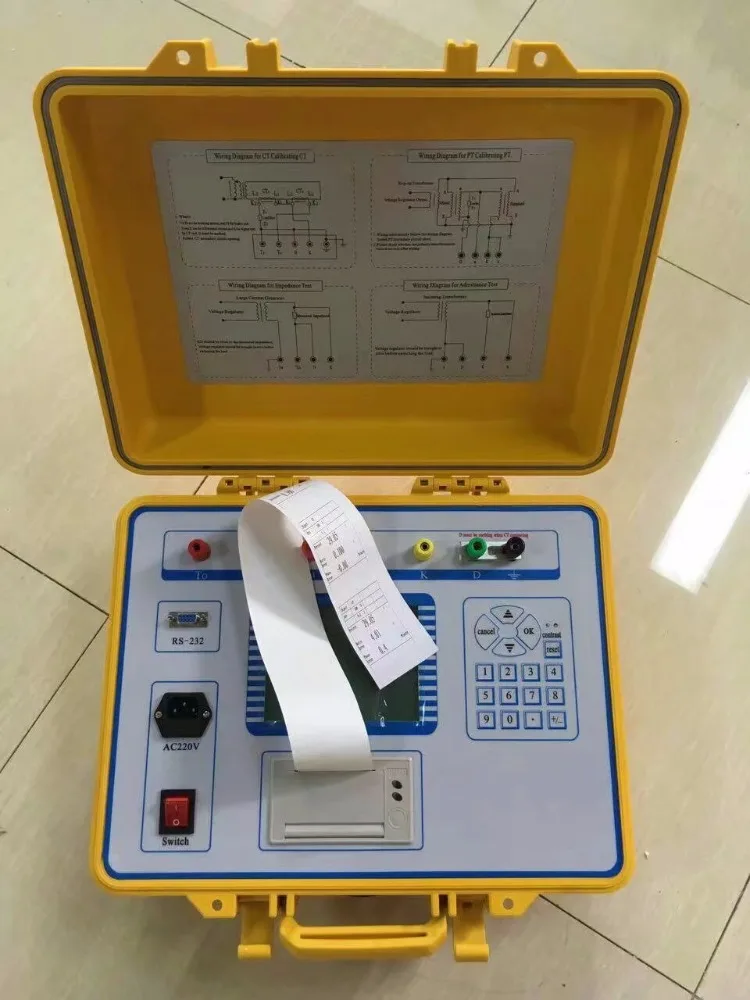

 Product overview: HGQB-C Transformer Calibrator could used to measure angle difference, admittance, impedance of CT and PT.Instrument with micro printer, and powerful software function and form, can be connected to computer, transmits the test data.



Technical index



1 Working Condition:

(1)Temperature: 5-40                     Relative humidity:<80%(25)

   Altitude: <2500m                          Power Frequency: 50Hz±0.5Hz

 Power Voltage: 220V±5V

(2)Measuring Range:

In-phase component(%):0.0001~200.0        Resolution: 0.0001

  Orthogonal Component (min):0.001~ 700.0    Resolution: 0.001

  Impedance(Ω):0.0001~20.0                  Resolution:0.0001

  Admittance(ms):0.0001~20.0                 Resolution:0.0001

(3)Basic Error:

  In-phase Component: ΔX=±(X×2%+Y×2%)±Dx  (with Class 1 to spare)

Orthogonal Component (with Class 1 to spare)

  “X”,“Y”——Values Displayed

  “Dx, Dy”——Quantified Error     Dx=2, Dy=5

(4)Percentage: Class 2 (with Class 1 to spare)

2 Working Range:

(1) Current:(1%-149%)In     (In =5A)

   (5%-149%)In     (In =1A)

(2) Voltage:(5%-149%)Un        (Un =100V,150V,100V/ )

          (5%-200%)Un        (Un =100V/3)

3 Work Load:

(1) Current: TO to TX<0.12Ω        cosΦ=1.0

(2) Voltage: a to x<0.25VA        (100V)

4 Reversed Polarity Indication

Take action according to the Polar Instructions when the current is larger than 5% of the rated value and the error is larger than 180%.

Note: If no indication comes up when the current is larger than 10% of the rated value, bug exists. On such occasions, be sure not to increase the current in case to burn the machine.

5 Indication of False Transformation Ratio

There should be an indication of false transformation ratio when the current is larger than 5% of the rated value and the error is between 30% and 180%.

6 Insulation and High Voltage Test

 Terminal TX is connected with terminal(

 The power socket can bear a voltage of 1.5kV with respect to the outer shell for 1 min.

7 Main Features of The Calibrator

 (1) Application of 320×240 LCD, broad vision, long life self lighting, making it convenient to operate.

  (2) All English interfaces, simple and nice.

  (3) Extra—large display of percentage, ratio error and phase error, easy to observe.

  (4) Automatic sampling, rightly meet the need of JJG314—1993 and JJG314—1994.

  (5) Automatic identification of polarity fault and ratio error mistake.

  (6) Software can be upgraded with time.

  (7) Completely solve the testing problems that Class S encounters.

  (8) Automatic switch of measuring range.

  (9) Perfect combination of advanced circuit technique and DSP; ultimately avoid the instability of the impedance phase differential circuit.

  (10) Power consumption:

      <15VA (with micro-printer)

      <25VA (without micro-printer)

  (11) Harmonic Suppression Ratio: >40db

  (12) Size:260mm(L)×350mm(W)×150(H)

  (13) Weight: 6kg




 HGQB-C
