Volt-Ampere Characteristic Tester

FOB Reference Price:Get Latest Price
US $1,000-3,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hubei, China (Mainland)
Brand Name:
Hance
Model Number:
HCVA
Power:
Hydraulic
Usage:
Auto Testing Machine
Power supply:
220V 50Hz
Color:
blue
Ratio:
≤0.5%
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
ship by wooden case
Port
shenzhen/shanghai/wuhan
Lead Time :
within 2 Weeks
Product Description

 Product overview

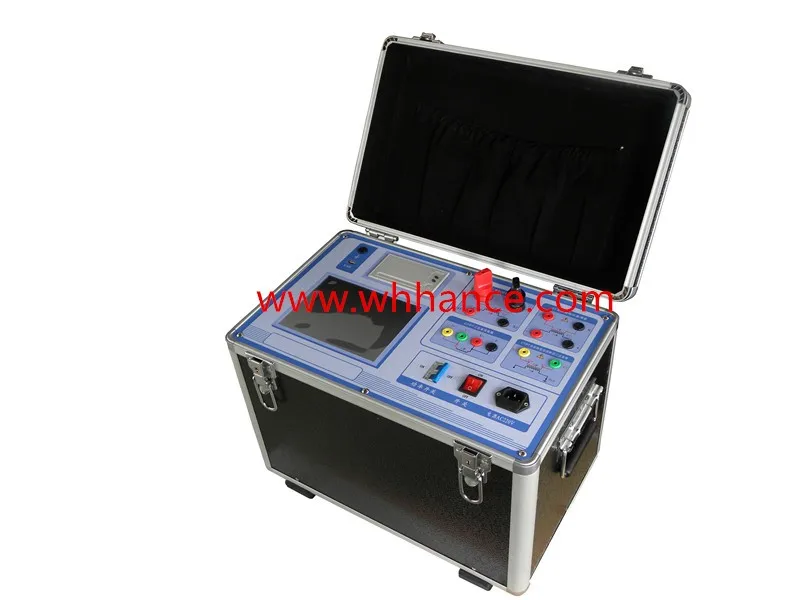

HCVA Tester is a full automatic PT,CT characteristics tester, the instruments could finish tests include: CT Volt-ampere characteristics test, PT Volt-ampere characteristics test, CT Polarity test, PT Polarity test, CT variable ratio Polarity test, PT variable ratio Polarity test, Automatic computing CT arbitrary point error curve,CT/PT variable ratio.



Full function

The functions provided by the device are as follows:



CT test: Volt ampere characteristic curve

        Automatic calculation of curve inflection point

        5% and 10% error curve

        Ratio and polarity

        Differential and angular difference measurement

        Secondary side circuit load testing

        Secondary winding ac withstand voltage

        The second dc resistance test

        A flow test

PT test: Volt ampere characteristic curve

        Automatic calculation of curve inflection point

        5% and 10% error curve

        Ratio and polarity

        Difference, angular difference measurement

        Secondary side circuit load testing

        Secondary winding ac withstand voltage

        The second dc resistance test

3, Output keeping

 Keeping boost function, used to measurement and detection and Secondary ac withstand voltage test. Keeping upwelling for the secondary loop check

4,True effective value sampling

All voltage and current signals are true and valid values sampling, please use the true effective value of the table to correct.

5,Single power supply, easy to operate

    Only need a single input power supply, AC220V, abandon the backward means of which the individual manufacturers still need 380V power to achieve the technical requirements.

6,U disk save

The test data can be transmitted to the PC through the U disk, processed, displayed, printed and storage of data and curves by PC, which greatly facilitates the user report.

7,Date and clock

Instrument comes with the system time, device automatically records the test time during test, in order to store test records and view.

8,No contact test, high security

Fully computerized device, without manual contact after setting, the instrument fully automatic test which enable the test personnel to be far away from the high voltage circuit, to ensure the test personnel security.

9,Large output capacity

Single output power, AC voltage output up to 2000V, current output short time up to 25A; maximum current 600A.

10,With large 8 inch color touch screen LCD, all Chinese graphical interface

Screen resolution ration up to 1024*768, high definition, full color touch operation leading domestic, interface background dream, the test directly shows the volt ampere curve, test record data, intuitive and convenient. The panel comes with a printer, can be printed at any time curve and test data.

11,Touch screen operation

Using the original touch technology of our company to operate. Full cancellation of the panel buttons, switches, control knob and other conventional controls. The operation is simple and convenient, and the service life is long.



12,Ultra large capacity data storage

Each function test can store 50 groups of test data, data power loss will not be lost forever,  after test it can be printed through loading or upload to the computer to save, print. Instrument also has a single U disk data storage function, the field test data is saved to the U disk, so that the field test records unlimited storage.



Technical parameters

Power input voltage

AC 220 V

Resolution ratio

CT volt ampere characteristic test

Secondary current secondary voltage

0~2500 V,0~20A

1mV,1mA

CT variable ratio error, angle error test

Primary side current

0~1000A

1mA

 Secondary side current

0~5 A

1mA

CT secondary loop load

 Secondary side current

0~5 A

1mA

Secondary-circuit impedance



0~10Ω

0.001Ω

 CT primary flow

Primary side current

0-1000A

1mA

PT Volt-ampere characteristic test



Output voltage

0~200 V

1mV

Output current

0~10 A

1mA

PT variable ratio, ratio angle error test



Primary side voltage

0~2500 V

1mV

Secondary rated voltage

100V,57.7V,100/3V

1mV

Accuracy class

Volt ampere characteristic test



< 0.5%

5% and 10% error curve



< 1%

Ratio test

< 0.5%

Angle error test

< 1%

 Secondary loop load test



< 0.5%

Power supply voltage



AC 220 V  50~60 Hz

Working environment temperature



-10℃ - +50℃





 HCVA-IV1HCVA-IV
