Multi-bit Transformer Test Equipment

FOB Reference Price:Get Latest Price
US $2,000-10,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hubei, China (Mainland)
Brand Name:
Hance
Model Number:
HGQH-C
Power:
Electronic
Usage:
Auto Testing Machine
Humidity:
Less than80%(25°C)
Altitude:
Less than 2500mm
Power frequency:
50Hz±0.5 Hz
Color:
white and blue
Accuracy class:
0.01,0.02,0.05
Current ratio:
1000A,2000A,3000A,5000A
First voltage:
6kV,10kV,35kV
Cetificate:
ISO9001:2008
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
packed with wooden case
Port
wuhan/shanghai/shenzhen
Lead Time :
within 2 Weeks

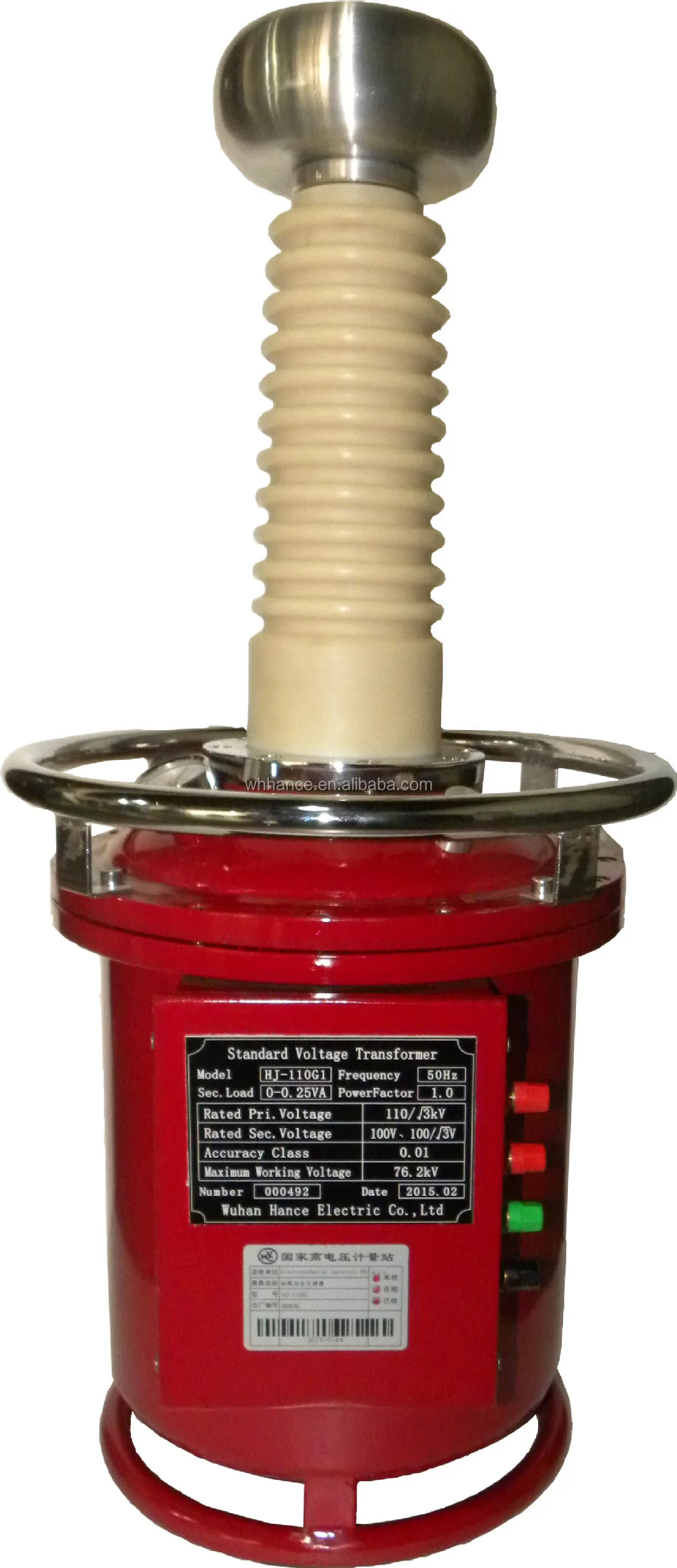

Product Description

 Product overview

(1) This device adopted program controlled source in the fine tuning, making it faster and more precise for point location.

(2) We have made essential progress in multi-CT test. This machine can detect 12 CTs of any transformation ratio in just 3 to 5 minutes.

(3) Now let’s cover some major parts of the device. The standard CT has 1A and 5A to choose from. The current load case has 1A and 5A to choose from, and its load is from 2.5VA to 80VA. The voltage load case has 100V,100/3V, 110V,110/√3V to choose from, and its load is from 1.25VA to 158.75VA. Besides, the load cases will switch automatically during the test. In total, this machine can meet the general need of users.

(4) The machine can perform regular or irregular test to transformers. And during the process, it can test any part as the user wants.



Technical Parameters

 Environment Conditions

  Temperature: 5°C~40°C

  Relative humidity :<80%(25°C)

Altitude :<2500m

  Power Frequency:50Hz ±0.5Hz

 Power Voltage:220V±5V



Parameters about HGQA-C Transformer Calibrator

1 Test Range

In-phase Component(%) :0.0001~200.0               Resolution:0.0001

Orthogonal Component(min) :0.001~999.9            Resolution:0.001

Impedance(W):0.0001~60.0:                         Resolution:0.0001

Admittance (ms):0.0001~60.0        Resolution:0.0001



2 Basic Error

In-phase Component :DX=±(X×2%+Y×2%±**)

Orthogonal Component: DY=±(X×2%+Y×2%±*****)

                            “X”,“Y”----- Values Displayed

                             “*****”-------Quantified Error

Percentage: Class 1



3 Working Range

Current:(1%-149%)In  (In=5A)

     (5%-149%)In  (In=1A)

4 Workload

Current : To to Tx<0.12W cosj=1

5 Reversed Polarity Indication

There should be an indication when the current is larger than 5% of the rated value and the error is larger than 180%.

Note: If no indication comes up when the current is larger than 10% of the rated value, bug exists. On such occasions, be sure not to increase the current in case to burn the machine.

6 Indication of False Transformation Ratio

There should be an indication of false transformation ratio when the current is larger than 5% of the rated value and the error is between 30% and 180%.





















Company Information

     Wuhan Hance Electric Co., Ltd is a professional manufacturer specializing in developing, producing and marketing electricity meters in electricity industry. Our main products include transformer calibration test equipment, measuring equipment, a variety of electrical test equipment, and automatic substations; they are widely used in electricity, water conservancy, oil, railway, mining, chemical, surveying, teaching, electronics, and other industries.







Factory



Customer Visiting



Field Debugging



Certifications



FAQ

1. Q: Are you a factory or trading company?

   A: We are a factory been in this area for more than 10 years.

2. Q: How long is the delivery time?

   A: The common device is about one week for in stock, two weeks for out of stock.

3. Q: How long is the warranty period?

   A: We provide one year warranty, life-long maintenance, 24 Hours online service.

4. Q: Can your equipment be debugged abroad?

   A:Of course, we go abroad to debug many times.

5. Q: What is the language about the software?

   A: English or according to your requirement.

6. Q:What is the payment and transaction mode?

   A: Payment is T/T, L/C, D/A,D/P and Trade Assurance. transaction is FOB, CIF, EXW, etc.
